Product details
Designed to remove surgical smoke from your OR

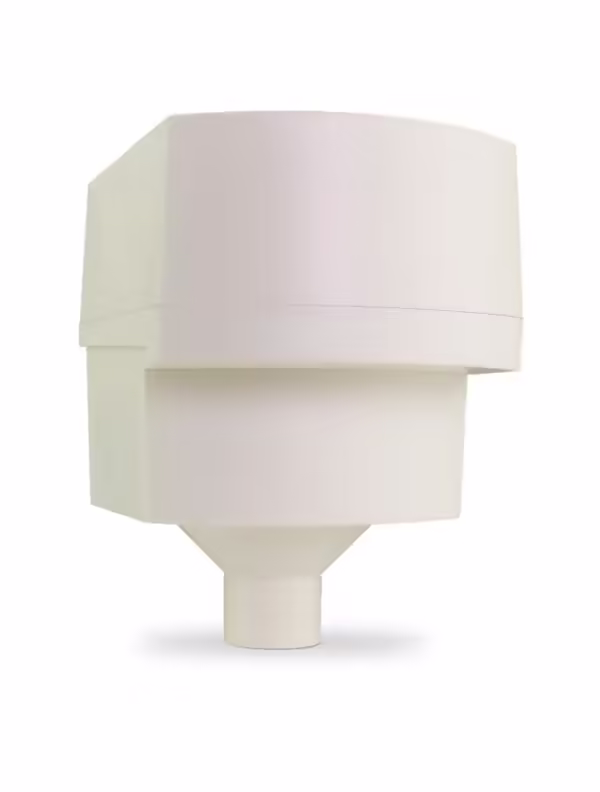

Acuderm\’s all purpose 110 volt surgical smoke evacuator in a complete wall mount package.
Ideal for procedures that generate a high volume of surgical smoke, such as electrosurgical, Erbium and CO2 laser procedures. It should be used for open procedures only.
For more information on the ACU-EVAC IE, Chat SOL Online and speak with an SOL representative today.
KeyFeatures
Electronic timer – 16 hours, PLUS low flow sensor/full filter alert
3-inch Clear Hyperbolic Horn with 1.3-inch I.D.For maximum collectionhold within 3 inches
Rotary variable airflow dial
Includes

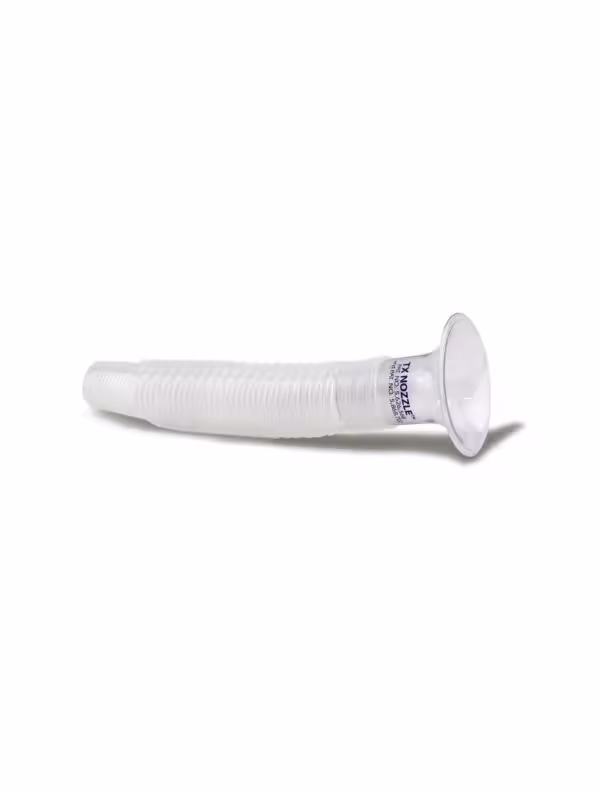

Acu-Evac IESmoke Evacuator Unit Main Filter (M-1) Wall MountBracket Hose 5 TX Nozzles PneumaticFoot Pedal 2-Year warranty
Technical Data
Coefficient of Entry: 98%Noise: <50dbLoss, Fraction of Velocity Head: 4%Air Volume: 100+CFMAir Velocity: >11,000 FPMMain Filter: ULPA/Carbon filter, rated at 99.99997% at 0.01 micron and MPPS 0.12 micronFilter Life Monitors: Electronic timer – 16 hours, PLUS low flow sensor/full filter alertMotor: ACStatic Suction: 63inches H2OCord/Plug: 8 ft. hospital gradeClassification: Type BF Class 1Certification: UL2601-1, 2nd Edition, CAN/CSA C22.2 Standard 601.1-M90, CE Certified (220-240V Models)Electrical Requirements: 110~120V, 50Hz/60Hz at 6.25Ampsor220~240V, 50Hz/60Hzat 4.0 AmpsDimensions (LxWxH): 300mm x 360mm x 1130mmWeight: 16.5 Lb
